Sealing uneven or shifting surfaces is a major challenge across industries. Traditional gaskets often fail under pressure or misalignment. Inflatable silicone seals fix this by expanding to fit precisely, forming a perfect barrier. Their reliability in high-stakes environments makes them essential in sectors like healthcare, food, and aerospace.

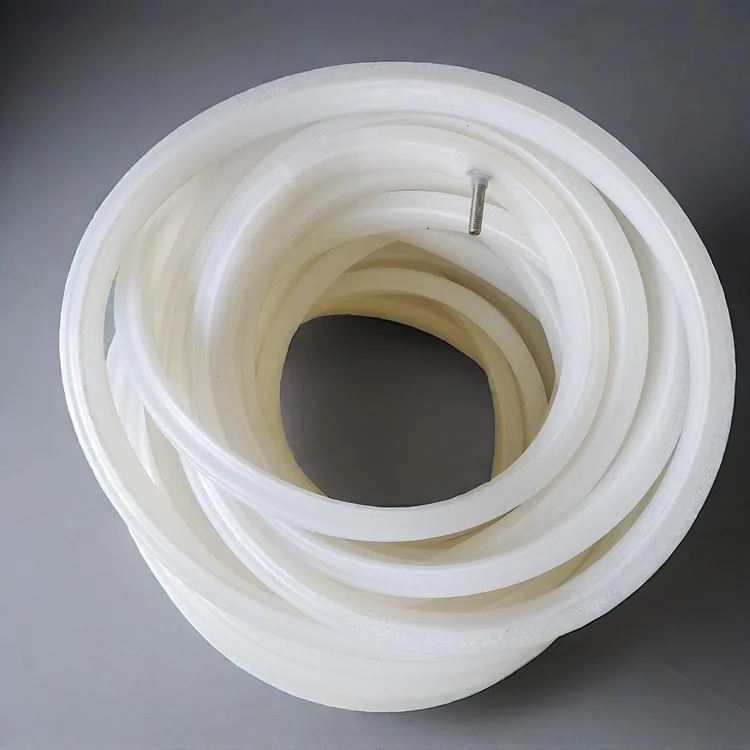

An inflatable silicone seal is a flexible rubber component that inflates with air or fluid to create a tight seal against surfaces. Made from durable, heat-resistant silicone, it conforms to uneven gaps and ensures an airtight or watertight barrier. These seals are commonly used in industries requiring cleanliness, pressure control, or environmental protection, such as pharmaceuticals, food processing, and cleanrooms.
From how they work to where they’re used, let’s take a closer look at inflatable silicone seals—so you’ll know exactly why they matter and how they’re applied.
How Do Inflatable Silicone Seals Work?
Inflatable silicone seals operate by inflating within a defined space when air or fluid pressure is introduced through a controlled system. Installed in grooves or channels, the deflated seal sits flush or recessed. Once activated, the seal expands outward to conform tightly to adjacent surfaces, compensating for gaps, surface irregularities, or misalignments. This inflation provides uniform pressure across the sealing area, creating a dependable barrier against air, dust, moisture, or other contaminants. When pressure is released, the seal returns to its original shape, allowing for easy separation or access between components.
These seals are particularly useful in applications where movement, cleaning, or access is frequent—such as in isolators, doors, hatches, or containment systems. Their ability to provide a repeatable and reliable seal makes them a superior choice compared to static gaskets.
What Is a Silicone Seal Made Of?
Inflatable silicone seals are manufactured primarily from high-purity silicone rubber. This material is known for its flexibility, thermal resistance, and excellent sealing performance. Silicone’s inherent properties—such as resistance to moisture, extreme temperatures, and many chemicals—make it ideal for use in demanding environments.
To suit specific industries, the silicone used in these seals can be formulated to meet stringent regulatory standards. For example, food-grade silicone meets FDA and BfR requirements, while medical-grade versions comply with biocompatibility regulations. The seals may also include internal reinforcement—such as fabric mesh or embedded cords—to improve strength and control the direction of inflation.
In addition to the silicone body, inflatable seals typically include a valve or hose connection, allowing for easy integration with air or fluid control systems. These fittings are carefully engineered to ensure no leakage during inflation or deflation cycles.
What Are Inflatable Silicone Seals Used For?
Inflatable silicone seals are used wherever a reliable, dynamic seal is required between two surfaces—especially those that move, flex, or misalign. They are widely adopted across industries that demand airtight or watertight sealing under challenging conditions.
In the pharmaceutical and biotech sectors, these seals are critical for isolators, glove boxes, and cleanroom door systems. Their ability to inflate and deflate on command ensures sterility is maintained without compromising access or efficiency.
In the food and beverage industry, inflatable silicone seals provide sanitary sealing for processing equipment, conveyor doors, and packaging systems. Their resistance to high temperatures and cleaning agents makes them suitable for frequent washdowns and contact with consumables.
In aerospace and transportation, they are used to seal hatches, access panels, and climate-controlled compartments, ensuring pressure integrity and environmental control.
Other common uses include containment systems, autoclaves, bulkhead doors, and inspection chambers—any application where conventional gaskets may fail due to pressure, alignment, or accessibility concerns.
What Sizes Do Inflatable Silicone Seals Come In?
Inflatable silicone seals are available in a wide range of sizes to accommodate various design and operational requirements. Standard dimensions typically range from 5×5 mm to 100×100 mm, but custom profiles can be manufactured to meet specific application needs.
These seals can be extruded into various cross-sectional shapes—such as round, U-shaped, P-shaped, or bulb-type profiles—to suit different mounting geometries. The length of each seal is often tailored to the equipment it serves, whether that’s a short perimeter seal for a chamber door or a long continuous loop for a full-sized containment unit.
The inflation characteristics, such as expansion height and pressure tolerance, also vary with size and profile. Manufacturers often collaborate with engineers to develop the optimal seal dimensions, ensuring performance under specific pressure, temperature, and movement conditions.
Custom tooling and prototyping services are commonly offered to create seals for non-standard grooves or complex sealing pathways, making inflatable silicone seals a flexible solution for both off-the-shelf and bespoke systems.
What’s the Difference Between a Gasket and a Seal?
Though often used interchangeably, gaskets and seals serve different purposes and are designed for distinct applications.

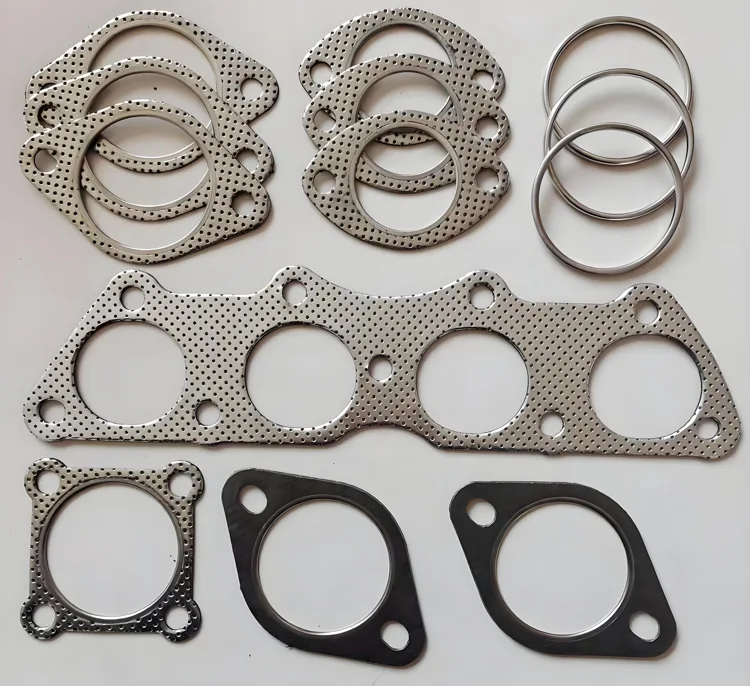

Gaskets are typically flat components made from compressible materials like rubber, cork, or paper. Their main job is to fill the space between two static, flat surfaces—such as pipe flanges or engine components—to prevent leaks when those parts are bolted together. Once installed, gaskets don’t move or change shape; they rely on compression alone to form a seal.
Seals, on the other hand, are more versatile and are often used in dynamic environments—where parts may rotate, shift, or move. Inflatable silicone seals take this a step further by actively changing shape in response to air or fluid pressure. They expand to create a seal only when needed and then return to a dormant state, allowing for easier maintenance, cleaning, or part separation.
In summary: gaskets are passive and best for static joints; seals are dynamic and better suited for systems that move or need repeatable engagement and disengagement.
Are Inflatable Silicone Seals Safe for Medical or Food Applications?
Yes, inflatable silicone seals are widely used in both medical and food-processing industries due to their safety, durability, and compliance with strict regulatory standards. The key lies in the type of silicone used—specifically, FDA-grade and medical-grade silicone—which is engineered to be non-toxic, odorless, and resistant to microbial growth.
In medical settings, these seals are often installed in cleanroom doors, isolation chambers, and pharmaceutical containment systems. Their non-reactive surface and ability to withstand sterilization cycles (such as autoclaving or chemical disinfection) make them ideal for maintaining sterile environments.
For the food and beverage sector, inflatable silicone seals help ensure hygiene by preventing contamination between compartments or during processing. They’re resistant to frequent washdowns, high temperatures, and contact with cleaning chemicals, which is essential for complying with HACCP, FDA, or BfR safety protocols.
Additionally, manufacturers often certify their seals under standards like EN 45545, USP Class VI, or 3-A Sanitary Standards, depending on the intended application. This provides added assurance for regulatory approval and operational safety.
How Long Do Inflatable Silicone Seals Last?
The lifespan of an inflatable silicone seal depends on several factors, including the operating environment, frequency of inflation cycles, and the quality of the material and manufacturing. Under normal conditions, these seals can last anywhere from 5 to 10 years, and sometimes longer with proper care.
Key longevity factors include:
- Cycle frequency: Seals that are inflated and deflated hundreds of times per day may wear faster than those used occasionally.
- Temperature and chemical exposure: High heat, aggressive cleaning agents, or corrosive environments can reduce material integrity over time.
- Design and fit: A well-designed seal that inflates uniformly and isn’t overstretched will last significantly longer.
To maximize seal life, regular inspection and maintenance are recommended. Some systems are also equipped with pressure monitoring to detect small leaks or performance drops, helping users anticipate and address issues before failure occurs.
When signs of fatigue—like loss of elasticity, cracking, or inconsistent inflation—begin to appear, replacement is usually straightforward, especially if the seal is designed for easy removal and installation.
How to Choose the Right Inflatable Seal for Your Application?
Choosing the correct inflatable silicone seal depends on understanding your system’s specific needs—mechanical, environmental, and regulatory. Here are the key factors to consider:
- Operating Conditions
Consider the temperature range, pressure levels, and exposure to moisture or chemicals. Silicone is ideal for high-temperature and sanitary applications, but additional coatings or reinforcements may be needed for extreme conditions. - Seal Geometry and Profile
The shape and size of the seal must match the groove or surface it will sit in. Common profiles include D-shaped, P-shaped, and custom extrusions. Choose a profile that balances sealing strength with required expansion range. - Inflation Requirements
Determine whether the seal will inflate with air, inert gas, or fluid. This affects the choice of material and fitting system. Also, verify whether inflation will be manual, automatic, or pressure-activated. - Certifications
For medical or food-related uses, look for seals certified to FDA, USP Class VI, BfR, or other relevant standards. These ensure compliance with health and safety regulations. - Installation Constraints
Some seals are easier to install and replace than others. If the application involves frequent disassembly or maintenance, consider modular designs or quick-release fittings. - Supplier Support
Reputable manufacturers often provide custom design support, testing data, and technical documentation. This is invaluable when creating solutions for niche or critical applications.
By evaluating these factors carefully, you’ll avoid underperformance and extend the seal’s working life—saving costs and preventing system failures down the line.
Summary
Inflatable silicone seals provide a reliable, adaptive solution for sealing challenges across industries. From cleanrooms to conveyors, their durability and precision make them indispensable. Still unsure which seal suits your needs? Contact us—we’re here to help you seal the deal with confidence.
